IDA逆向作业练习

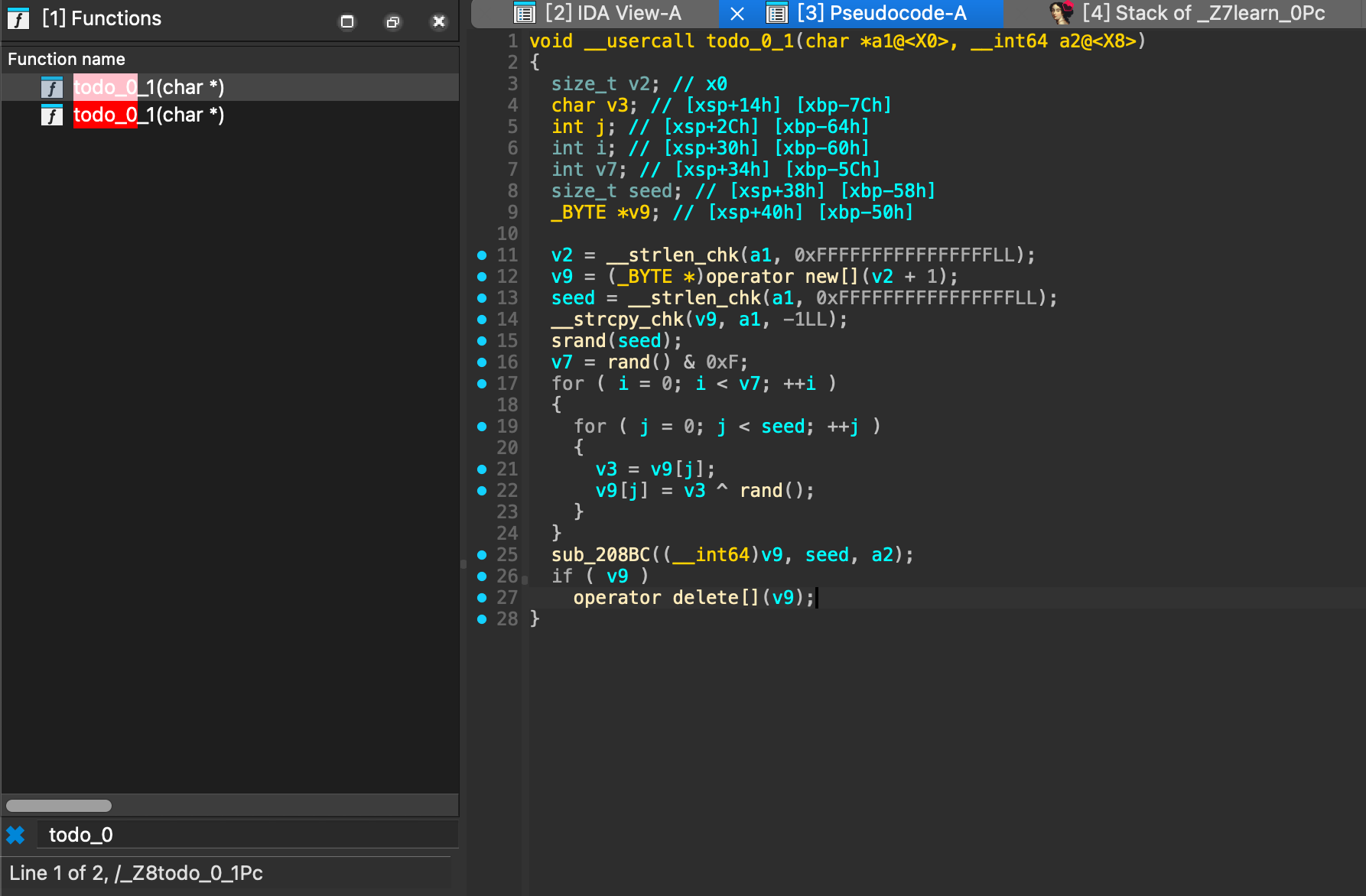

打开后搜索todo_0方法，找到后按Tab进入混淆汇编代码，美化前：
代码分析得知：
strlen_chk方法有a1参数，所以他可能为输入参数，则赋予v2变量可能为字符串长度，v9可能为申请内存后的地址，大小为v2+1。
strcpy_chk可能为复制操作，将a1复制到v9，运行sub_208BC方法后，释放内存。
接着进入sub_208BC函数：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
__int64 __usercall sub_208BC@<X0>(__int64 a1@<X0>, unsigned __int64 a2@<X1>, __int64 a3@<X8>)
{
__int64 result; // x0
unsigned __int64 i; // [xsp+18h] [xbp-28h]
//unsigned 无符号
result = sub_21BF4();
for ( i = 0LL; i < a2; ++i )
{
sub_23140(a3, (unsigned __int8)a0123456789abcd[(int)*(unsigned __int8 *)(a1 + i) >> 4]);
//sub_23140方法将a1 + i的值右移四位
result = sub_23140(a3, (unsigned __int8)a0123456789abcd[*(_BYTE *)(a1 + i) & 0xF]);
}
return result;
}
|
美化后：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
|
void __usercall todo_0_1(char *input_str_2@<X0>, char *output_str@<X8>)
{
size_t input_str; // x0
char v3; // [xsp+14h] [xbp-7Ch]
int j; // [xsp+2Ch] [xbp-64h]
int i; // [xsp+30h] [xbp-60h]
int random_num; // [xsp+34h] [xbp-5Ch]
size_t input_len_1; // [xsp+38h] [xbp-58h]
_BYTE *data; // [xsp+40h] [xbp-50h]
input_str = __strlen_chk(input_str_2, 0xFFFFFFFFFFFFFFFFLL);
data = operator new[](input_str + 1);
input_len_1 = __strlen_chk(input_str_2, 0xFFFFFFFFFFFFFFFFLL);
__strcpy_chk(data, input_str_2, -1LL);
srand(input_len_1);
random_num = rand() & 0xF;
for ( i = 0; i < random_num; ++i )
{
for ( j = 0; j < input_len_1; ++j )
{
v3 = data[j];
data[j] = v3 ^ rand();
}
}
enccode_hex(data, input_len_1, output_str);
if ( data )
operator delete[](data);
}
|
还原代码：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
|
from ctypes import c_int
import binascii
# Windows随机数生成器
windows_status = 1
def windows_srand(seed):
global windows_status
windows_status = seed
def windows_rand():
global windows_status
windows_status = (214013 * windows_status + 2531011) & 0xffffffff
return windows_status >> 16 & ((1 << 15) - 1)
# Android随机数生成器
android_seed = 0
android_multiplier = 0x5DEECE66D
android_addend = 0xB
android_mask = (1 << 48) - 1
android_seedUniquifier = 8682522807148012
def android_srand(seed):
global android_seed
android_seed = _initialScramble(seed)
def _initialScramble(seed):
return (seed ^ android_multiplier) & android_mask
def _next(bits):
global android_seed
oldseed = android_seed
nextseed = (oldseed * android_multiplier + android_addend) & android_mask
android_seed = nextseed
return c_int(((nextseed >> (48 - bits)))).value
def android_nextInt():
return _next(32)
def android_nextInt_bound(bound):
global android_seed
r = _next(31)
m = bound - 1
if bound & m == 0:
r = (((bound * (r & 0xffffffffffffffff)) >> 31) & 0xffffffff)
else:
u = r
r = u % bound
while u - r + m < 0:
r = u % bound
u = _next(31)
return r
# Linux随机数生成器
linux_status = 0
linux_r = []
def linux_srand(seed):
global linux_status, linux_r
if seed == 0:
seed = 1
word = seed
seed = seed & 0xffffffff
linux_status = 0
linux_r = [0] * (344 + linux_status)
linux_r[0] = seed
for i in range(1, 31):
if word < 31:
hi = (-word) // 127773
hi = -hi
lo = (-word) % 127773
lo = -lo
else:
hi = word // 127773
lo = word % 127773
word = ((16807 * lo)) - ((2836 * hi))
if word < 0:
word = (2147483647 + word) & 0xffffffff
linux_r[i] = word
for i in range(31, 34):
linux_r[i] = linux_r[i - 31]
for i in range(34, 344):
linux_r[i] = (((linux_r[i - 31] + linux_r[i - 3]) & 0xffffffff) % (1 << 32)) & 0xffffffff
def linux_rand():
global linux_status, linux_r
linux_r.append(0)
linux_r[344 + linux_status] = (((linux_r[344 + linux_status - 31] + linux_r[344 + linux_status - 3]) & 0xffffffff) % (1 << 32)) & 0xffffffff
linux_status += 1
return linux_r[344 + linux_status - 1] >> 1
# 加密函数
def todo_0(s):
linux_srand(len(s))
enc_loop = linux_rand() & 0xF
s = bytearray(s)
for _ in range(enc_loop):
for i in range(len(s)):
s[i] = s[i] ^ (linux_rand() & 0xff) #0xff是限制结果
return s
# 示例使用
input_bytes = b'1234'
encrypted_bytes = todo_0(input_bytes)
print(binascii.hexlify(encrypted_bytes))
|
